Fiberglass filter media/ Paint stop filter
    发布时间: 2023-09-06 10:14

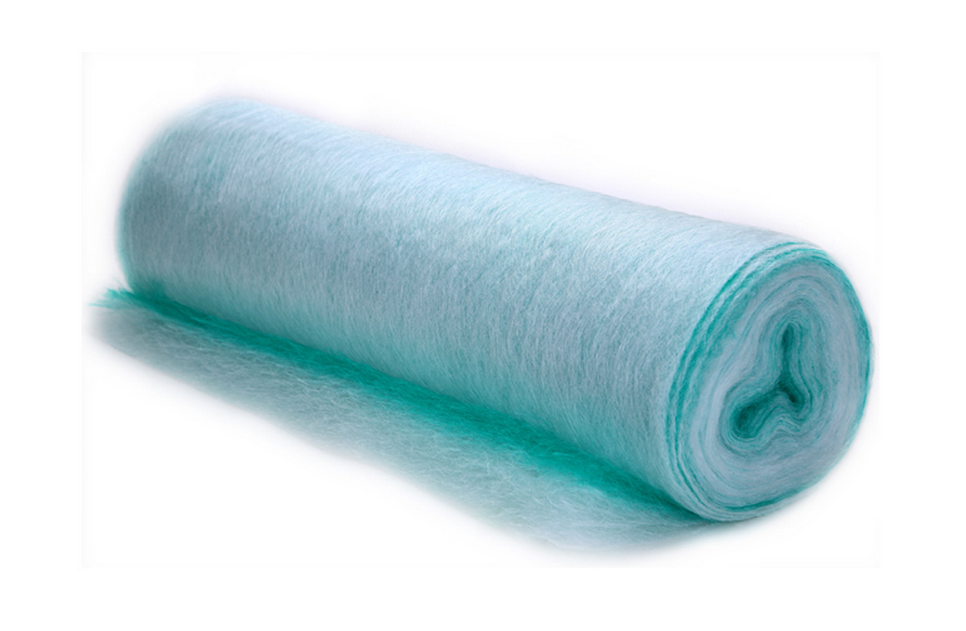

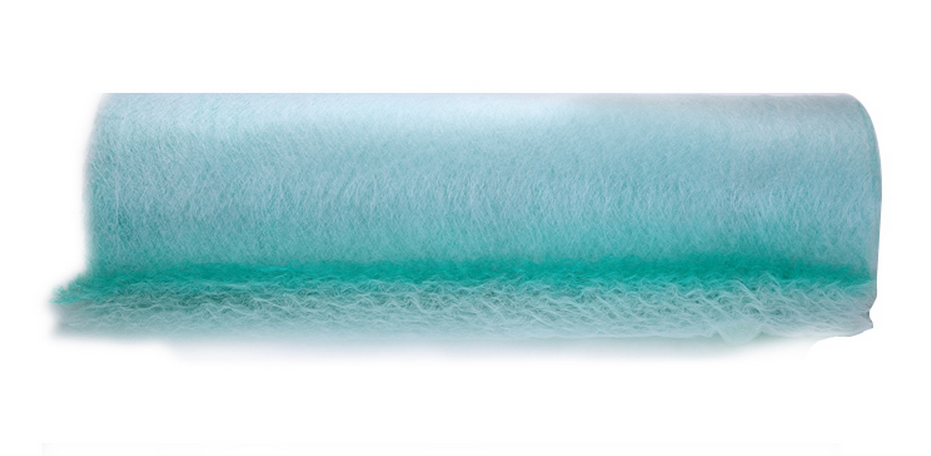

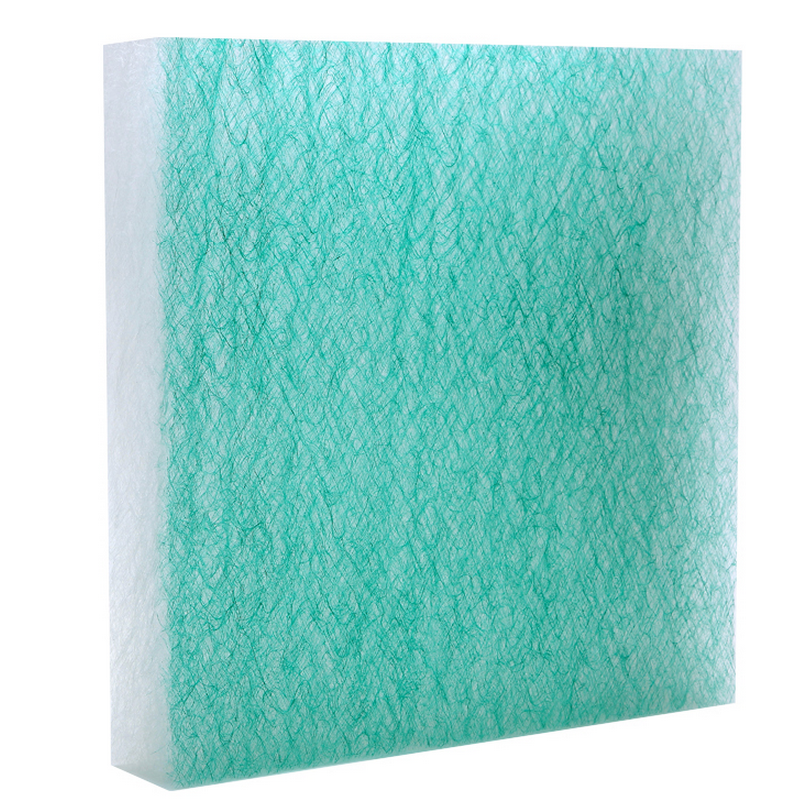

Fiberglass filter media/ Paint stop filter

Speciality:

1. Fiberglass filter media is made of long fiberglass in non-woven way, large ventilation quantity, small resistance, good efficiency of the dust arrestance for the over-spray.

2. It is applied to the superficial spray coating high quality painting-spray filtration, high dust catching for PA-50/60/PA-100, especially suitable for using heat recovery system;

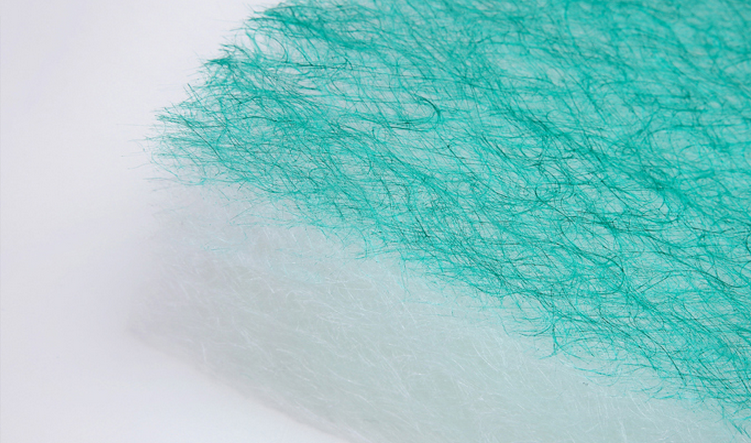

3. High strength fiberglass increasing structure; the windward side is green, the leeward side is white;

4. The low compression preformance maintains its outlook, which is completely useful for the filtration fiber to keep the oil mist and the dust;

5. Nonflammability, temperature resistance at 170°C;

6. The compression packing may save the fare and the storage in the transportation. After decompression, it will regain its original condition;

7. Produce according to EN 779: 2012.


Notice: 1, The products will be stored in dry condition;

2, If the filter can not restore 5cm~6cm when you open the package and begin to use, please do not use it;

3, Glove needed when you replace the filter;

4, Keep it away from children.


Model

LH/PA-60

LH/PA-100

Average arrestance

92%-96%

97%-99%

Initial pressure drop

15Pa

20Pa

Final pressure drop

250 Pa

280 Pa

Air velocity

0.7-1.5.m/s

0.7-1.75.m/s

Air Flow

5000m3/h

5000m3/h

Dust holding at final

3200-3600g/m2

3600-4900g/m2

Temperature resistance

170°C

170°C

Temperature short peaks

190°C

190°C

Normal thickness

70mm

100mm

Normal size

               0.8m x 20m,1.0m x 20m,1.6m x 20m, 2.0m x 20m
